Barbed Wire

Products information: Barbed wire twisted and weaved by high quality galvanized wire and PVC wire.

Feature: Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

Material: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.

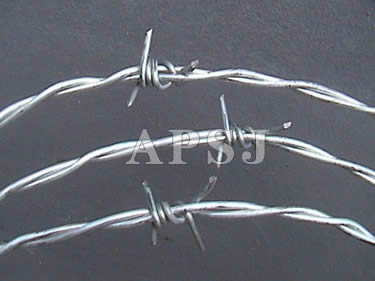

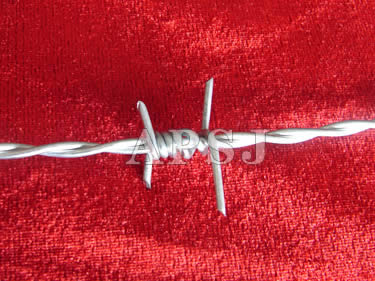

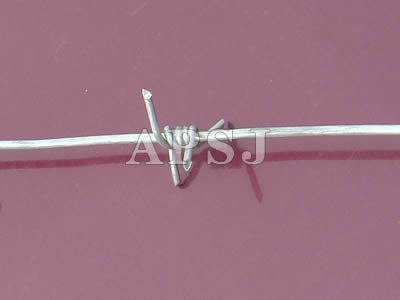

Patterns available: Single Twisted Barbed Wire/ Double Twisted Barbed Wire/ Traditional Twisted Barbed Wire.

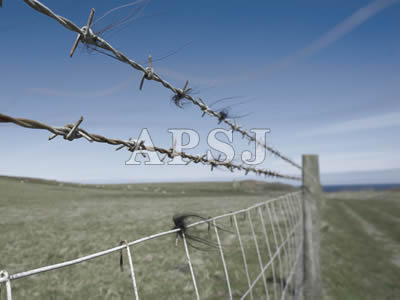

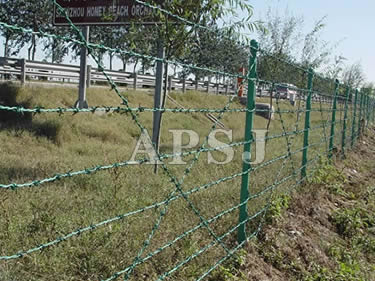

Application: Barbed wire mainly used in protecting of grass boundary, railway, highway, wine, prison, etc.

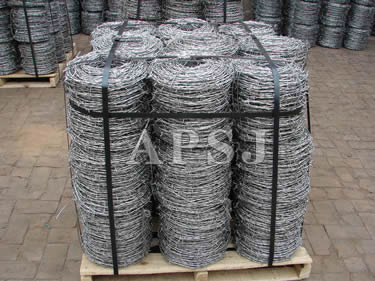

Packing: Plastic inside, hessian outside Plastic inside, waving bag outside

1. In nude;
2. In iron axletree;
3. In wood axletree;
4. In wood pallet.

Specifications of Barbed Wire
Gauge of Strand and Barb in B.W.G.	Approximate Length per kilogram in Meter
	Barbs Spacing 3"		Barbs Spacing 4"		Barbs Spacing 5"		Barbs Spacing 6"
12 x12	6.0617		6.7590		7.2700		7.6376
12 x14	7.3335		7.9051		8.3015		8.5741
12-1/2 x 12-1/2	6.9223		7.7190		8.3022		8.7221
12-1/2 x 14	8.1096		8.814		9.2242		9.5620
13 x13	7.9808		8.899		9.5721		10.0553
13 x14	8.8448		9.6899		10.2923		10.7146
13-1/2 x14	9.6079		10.6134		11.4705		11.8553
14 x14	10.4569		11.6590		12.5423		13.1752
14-1/2 x14-1/2	11.9875		13.3671		14.3781		15.1034
15 x15	13.8927		15.4942		16.6666		17.5070
15-1/2 x15-1/2	15.3491		17.1144		18.4060		19.3386
Barbed Wire Specification
Type		Wire Gauge (SWG)				Barb Distance (cm)		Barb Length (cm)
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire		10# x 12#				7.5-15		1.5-3
		12# x 12#
		12# x 14#
		14# x 14#
		14# x 16#
		16# x 16#
		16# x 18#

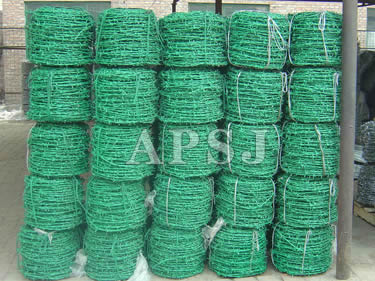

PVC coated barbed wire; PE barbed wire		before coating		after coating		7.5-15		1.5-3
		1.0mm-3.5mm		1.4mm-4.0mm
		BWG11#-20#		BWG8#-17#
		SWG11#-20#		SWG8#-17#
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
