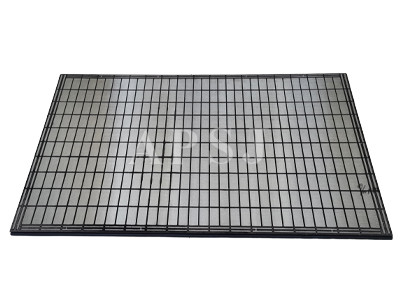

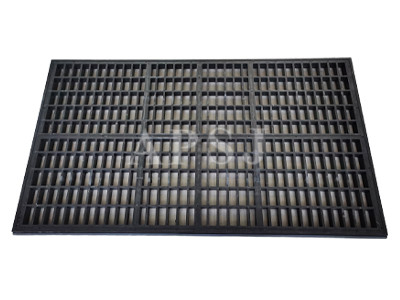

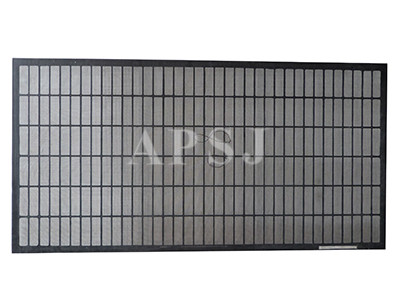

Plastic Frame Shaker Screen
Our plastic frame shaker screen is a premium solution for efficient solids control in drilling operations. Crafted with precision and durability in mind, these screens are engineered to deliver superior performance and reliability in the most demanding environments.
Features
- High-Strength Construction: The frame of the screen is constructed from high-quality polyurethane material, ensuring exceptional strength and durability.
- Stainless Steel Wire Cloth Layers: Each screen features two or three layers of 304 or 316 stainless steel wire cloth, providing reliable filtration and separation of solids from drilling fluids.
- Enhanced Durability: The design includes independent small cloths to prevent excessive expansion of localized damage. Additionally, special rubber plugs are included for quick and easy repair of any damage, minimizing downtime and maintenance costs.
- Convenient Installation: Rapid wedge tensioning devices make installation a breeze, saving valuable time during screen changes and maximizing operational efficiency.
- Superior Performance: Our Plastic Frame Shaker Screens are engineered to deliver optimal performance in a variety of drilling conditions. The polyurethane frame enhances corrosion resistance and offers excellent shock absorption, extending the working life of the screen.
Specifications
- Frame Material: Polyurethane
- Wire Cloth Material: 304 or 316 Stainless Steel
- Layers: Two or Three
- Size: Custom sizes available upon request
| Modle | Brand & Model for Shaker Screen | Mesh Range | Dimension | Weight |
|---|---|---|---|---|
| (Length x Width) | ||||
| PFS-1 | Swaco Mongoose PWP | 20-325 | 1165 x 585 x 40 mm | 11.5 KGS |
| PFS-2 | Swaco Mongoose Corrugated | 20-325 | 1165 x 585 x 60 mm | 13 KGS |
| PFS-3 | Brandt King Cobra | 20-325 | 1250 x 635 x 30 mm | 12.5 KGS |
| PFS-4 | Kemtron KPT 28 | 20-325 | 715 x 1250 mm | 19 KGS |
| PFS-5 | VSM300 Primary | 20-325 | 890 x 686 mm | 8.6 KGS |
| PFS-6 | VSM300 Scalping | 20-325 | 940 x 676 mm | 12 KGS |
| PFS-7 | Swaco MD - 3/2 | 20-325 | 650 x 610 mm | 6.5 KGS |
| PFS-8 | SWACO D380 | 20-325 | 712 x 1181 mm | 15.8 KGS |
| PFS-9 | FSI5000 | 20-325 | 736 x 1067 mm | 14.5 KGS |
Applications
- Oil and Gas Industry: Ideal for use in shale shakers to separate solid particles from drilling fluid, ensuring efficient solids control and maximizing drilling efficiency.
- Mining and Construction: Suitable for various drilling operations in mining and construction projects, where reliable solids control is essential for optimal performance.
